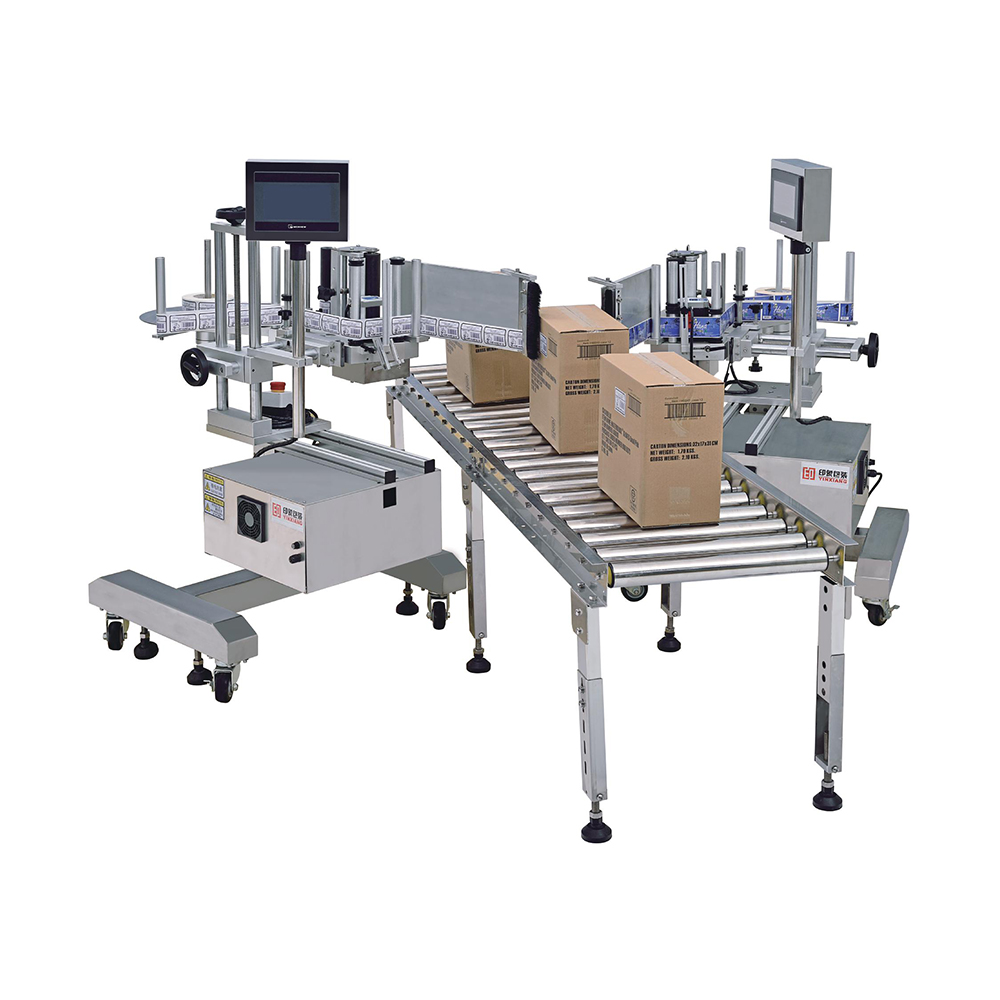

SIngles-Head Lateral Labeling Machine

Detailed introduction

單頭側面貼標機


The machine applies to lateral labeling of shaped cartons and square products.Applicable labels are sticker labels used by rolling machines.


● Machine materials:S304 stainless steel and anodized advanced aluminum alloy.

● Conveying machine not included.

● Power for labeling:advanced stepping servo motor.

● Advanced photoelectric eye made by Japanese or German enterprises.

● Control:PLC and man machine interface.

● Adjustable labeling position:front，rear，up，or dowm.

● Inner diameter of paper roll p76mm；outer diameter 360mm.

● Label specifications:bottom paper width 20~130mm（width can be adjusted according to customer requirements）.

● Labeling precision：±3mm（except for errors of the products and labels）.

Labeling speed：0-25m/min

Power：200W，220V，50Hz

Net weight of machine：100kg

Boxing weight；300kg

Machine dimensions: L1200mm×W800mm×H1300mm

Boxing dimensions: L1300mm×W900mm×H1400mm
